Odoo Image Guide

Version 10.0_20170217

Websoft9 Odoo is a pre-configured, ready to run image for running Odoo on Alibaba Cloud.

Odoo is a suite of web based open source business apps.The main Odoo Apps include an Open Source CRM, Website Builder, eCommerce, Warehouse Management, Project Management, Billing & Accounting, Point of Sale, Human Resources, Marketing, Manufacturing, Purchase Management,Odoo Apps can be used as stand-alone applications, but they also integrate seamlessly so you get a full-featured Open Source ERP when you install several Apps.

Odoo version: odoo-10.0_20170217  Community version
Odoo directory: /usr/lib/python2.7/site-packages/odoo
Odoo configuration file: /etc/odoo/odoo.conf
Odoo log file: /var/log/odoo/odoo-server.log

PostgreSQL version: PostgreSQL 9.2.18
PostgreSQL directory: /var/lib/pgsql
PostgreSQL configuration file: /var/lib/pgsql/data/postgresql.conf
PostgreSQL default user/password:postgres/123456

Python version: Python 2.7.5

LAMP basic software environment guide: LAMP

After the installation of Image,please verify it

  • Login on Alibaba Cloud console,get you Internet IP Address
  • Open you Chrome or Firefox on your local PC,visit the http://<Internet IP Address>:8069
  • If verify successfully,you can enter the boot page of Websoft9 below
  • If no response from browser,please check the Security Group settings to ensure that port 80 is been allowed

1.Use following URL to open Odoo page: http://Internt IP Address:8069
2.Create a new database, Set Odoo Email and password by filling out the form, Click “create database”.

3.OK, it has been installed successfully.

4.You can log off the user and log in using the administrator email and password you just set.

Database manager of Odoo can help you backup,duplicate,restore database online.

How to use it?

1.Use following URL to open Odoo page: http://Internet IP Address:8069
2.Click “Manage Databases”,you will enter the Database manager of Odoo interface

Set a master password

You must set a master password once you have completed the installation of Odoo

  1. Enter the Database manager of Odoo interface.
  2. Click “Set a master password”.
  3. Set your Odoo database password,Click “Continue”.

OK,Please remember your Odoo database password for data backup and recovery.

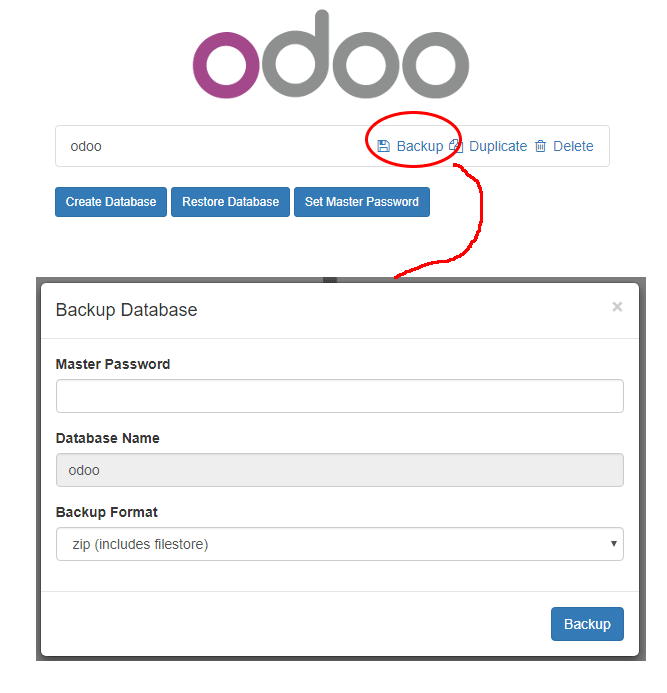

Backup Database

  1. Enter the Database manager of Odoo interface.
  2. Click the “Backup” button

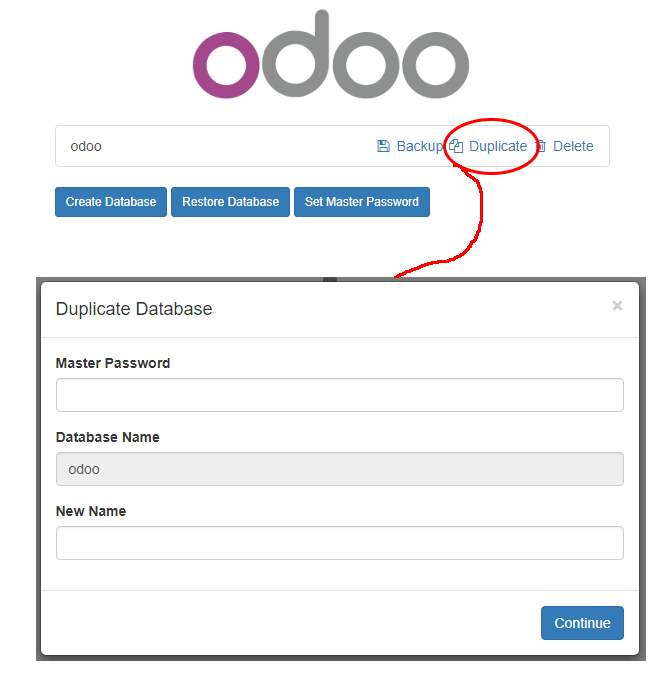

Duplicate a database

  1. Enter the Database manager of Odoo interface.
  2. Click the “Duplicate” button

Note:When you duplicate a local database, it is strongly advised to change the duplicated database’s uuid (Unniversally Unique Identifier), since this uuid is how your database identifies itself with our servers. Having two databases with the same uuid could result in invoicing problems or registration problems down the line.

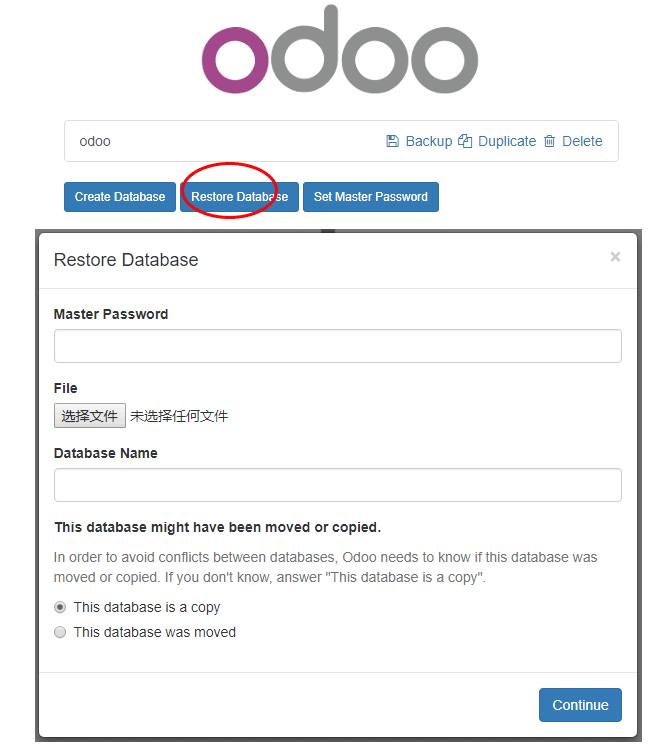

Restore Database

  1. Enter the Database manager of Odoo interface.
  2. Click the “Restore Database” button

It is strongly recommended that you create a backup before starting the update process. If you have important data, it is advisable that you create and try to restore a backup to ensure that everything works properly.

  1. Go to your Odoo installation and instead of logging in, click “Manage Databases”.
  2. From this web interface, create a backup of the odoo database.
  3. Stop the running application.
  4. Install a new version of Bitnami Odoo (or deploy a new server).
  5. From the “Manage Databases” interface, restore the odoo database.
  6. Stop all servers except PostgreSQL and migrate your data as explained in the section on migration.

Odoo is a erp system that mean use more computing resources.

The minimum ECS configuration we suggest

  • CPU:2 cores
  • Memory:4G
  • Network bandwith:2M

Odoo support more than

  1. Settings->Load a Translation,select the a new language you want,and then click the “load” button
  2. You can receive the message “The selected language has been successfully installed… ” if load language successfully
  3. Change the preferences of the user and open a new menu to view the changes.
  4. Select the language you want to use and then save it

The development mode can help you to do more setting with Odoo

When you enter the Setting panel,you can find the active development mode in the “share the love” section on the right below

  1. First of all, remove the previous version of wkhtmltopdf that’s already installed on your system.
    sudo apt-get remove wkhtmltopdf
    sudo apt-get autoremove
  2. Then go to the official site of wkhtmltopdf and download the latest version from there.
    wget https://github.com/wkhtmltopdf/wkhtmltopdf/releases/download/0.12.4/wkhtmltox-0.12.4_linux-generic-amd64.tar.xz
  3. After that, unzip the file using this command.
    tar -xf {file_name}
  4. Now, copy the files from the extracted folder into the /usr/bin/ as this is the directory where Odoo looks for wkhtmltopdf .
    sudo cp wkhtmltox/bin/wkhtmltoimage /usr/bin/
    sudo cp wkhtmltox/bin/wkhtmltopdf /usr/bin/
  5. Restart your Odoo Server now. Everything should be working fine.

In order to configure email, follow the steps below:

Browse to the Settings -> General settings,the first setting item is email

  • Configure outgoing email servers
  • Configure the incoming email gateway

Config domain for Odoo is not the same with PHP applications.If you use Apache http server,please follow below:

  1. Set you DNS from Domain Admin Panel,make sure one A record resolution to Internet IP Address,e.g 47.88.157.4
  2. Make sure you have completed the installation and you can visit the Ghost through http://47.88.157.4:8069
  3. Modify the /usr/local/apache/conf/httpd.conf
    Enable the proxy module by removing the “#” before it
    LoadModule proxy_module modules/mod_proxy.so
    LoadModule proxy_http_module modules/mod_proxy_http.so
  4. Add new config code snippet to /usr/local/apache/conf/extra/httpd-vhosts.conf
    Note:172.21.172.27 is you Server’s Private IP Address

    <VirtualHost *:80>
    ServerAdmin webmaster@dummy-host2.localhost
    ServerName youdomain.com
    ProxyRequests off
    <Proxy *>
    Order deny,allow
    Allow from all
    </Proxy>
    ProxyPass / http://172.21.172.27:8069/
    ProxyPassReverse / http://172.21.172.27:8069/
    </VirtualHost>
  5. Modify the /usr/local/apache/conf/httpd.conf,remove the “#” before Include conf/extra/httpd-vhosts.conf
    # Virtual hosts
    Include conf/extra/httpd-vhosts.conf
  6. Restart Apache
    # service httpd restart



Config domain for Odoo is not the same with PHP applications.If you use Nginx http server,please follow below:

  1. Set you DNS from Domain Admin Panel,make sure one A record resolution to Internet IP Address,e.g 47.88.157.4
  2. Make sure you have completed the installation and you can visit the Odoo through http://47.88.157.4:8069
  3. Create a new file in /etc/nginx/sites-available/ called ghost.conf
  4. Open the file with a text editor (e.g. sudo nano /etc/nginx/sites-available/odoo.conf) and paste the following:
    server {
     listen 80;
     server_name example.com;

     location / {
         proxy_set_header   X-Real-IP $remote_addr;
         proxy_set_header   Host      $http_host;
         proxy_pass         http://127.0.0.1:8069;
     }
    }
  5. Change server_name to your domain
  6. Symlink your configuration in sites-enabled:
    $ sudo ln -s /etc/nginx/sites-available/odoo.conf /etc/nginx/sites-enabled/odoo.conf
  7. Restart nginx
    $ sud
